Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: focus
  • Material: metal
  • color: black

Packaging & Delivery

Packaging Details: carton
Delivery Detail: one week

Specifications

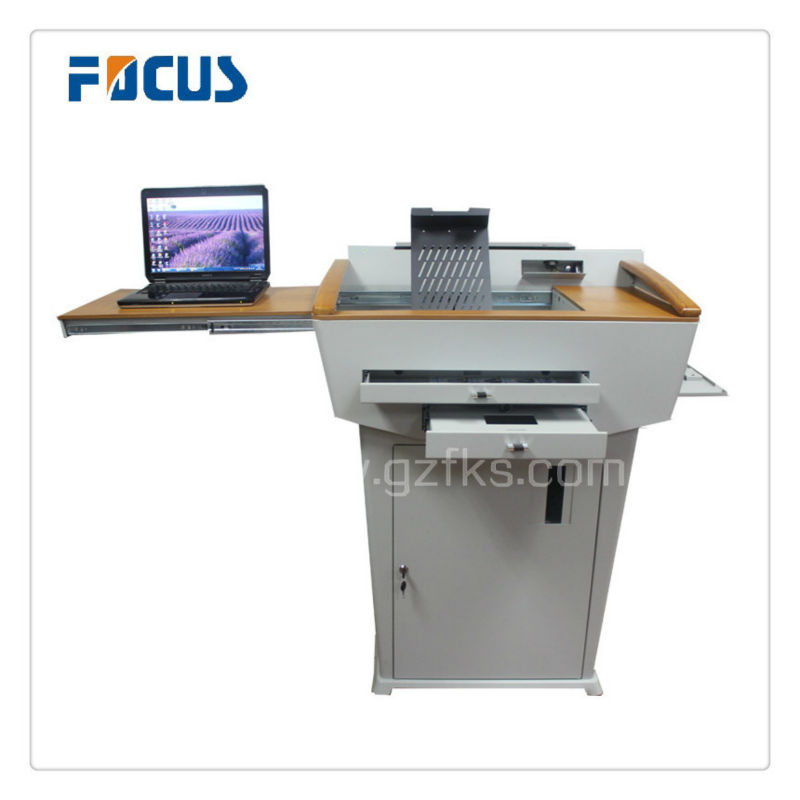

multimedia podium/education lectern/e-classroom lectern

multimedia podium/education lectern/e-classroom lectern

19'' hand-touch lcd screen technology based on Digitizer technology.
Audio : Integrated Amplifier
Power Consumption Up to 320W
one-Year limited equipment warranty.
Handwritten pen software: Supported operating system Window 7, Windows Vista, XP, 2000
Quality: ISO09001, IS014000, CCC and CE certification(The first enterprise of education)
19" Touch MonitorLuminance300cd/m2
Contrast Ratio1000 : 1
Resolution1440 x 900
Response time (ms)5ms
Power supply12V_4A AC adapter
Viewing Angles170(H);160(V)
TechnologyTouch panel of resistance
InterfaceUSB/VGA/DC12V
Durability30 million times touch validity
BodyMaterial: solid wood and 1.5/2.0 mm stainless steel Close size: (L*W*H)1100*750*1005MM, open size: 1550*750*1070MM
Multimedia Controller    VGAVGA InputsVGA   X 3
VGA OutputsVGA   X 2
Signal TypeVGA, XGA
Pixel Frequency440MHz
VideoComposite InputsVideo   X 4
Composite OutputVideo   X 2
Bandwidth100MHz
Return loss-30dB; 5MHz
ControlSwitch Control PortsX 2
Screen Relay ControlsX 2
Serial RS-232 PortsX 1
OtherPower(Adaptor)12V, 4A
Digital AmplifierOutput Power (Max)4*80W/8  4*160W/4
Microphone Inputs8~20mV (3 Input)
PC/Laptop Inputs70mV (2 Input)
Audio Inputs70mV (4 Input)
Audio Outputs250mV (3 Output)
Frequency Response25Hz ~ 20KHz
AC Power220V to 240V AC, 20Hz/20kHz
Wireless MicrophoneFrequency ranges174.0MHz ~ 270.0MHz
TypeHand and Belt
Oscillation modePLL synthesized
Frequency stability±0.005% (-10~50°C)
Frequency response40Hz ~ 18KHz
THD (1KHz)<0.5%
Signal to Noise ratio>90dB
Power consumption24W
Controller panelController panel separated with the host
High voltage control module:the power of projector and screen lifting
Computer automatic switch machine button
Volume and tone control module
Light touch glass panel with a backlight
Laptop Interface ModulesVGA x1
Tablet USB x1
USB x2
Sound In x1
Power x1
Power distributorAC Outputs220V-240V AC, 50Hz/60Hz
Maximum Input Power3KW
